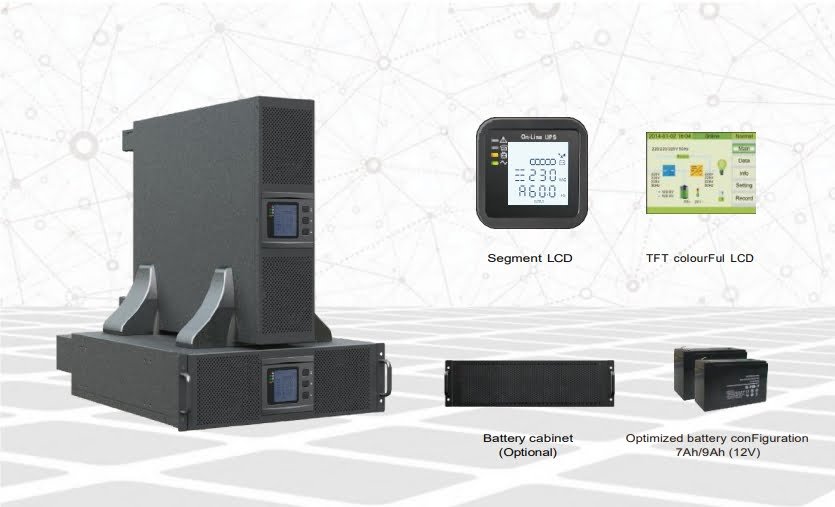

-LCD support Rack/Tower convertible design
-N+X parallel redundancy, support maximum 4 units in
parallel
-Online double conversion with DSP control
-Input current harmonic:<3%
-Wide input voltage range:208~478Vac
-Wide input Frequency range 40~70Hz
-Optimization battery group, the quantity of battery:30~50pcs
is settable
-Maximum charging current up to 20A (Settable)
-Dual input source
-Support 3/3 and 3/1 and 1/1 operation
-Generator compatible
-ECO mode operation for energy saving
-Cold start
-Intelligent Fan speed regulation
-Self testing when UPS startup
-50/60Hz Frequency converter mode
-The output can meet 100% unbalanced load
-Multiple protection Function: short-circuit, overload,
overheat, battery overcharge and overdischarge, output
low voltage and Fan Fault alarm

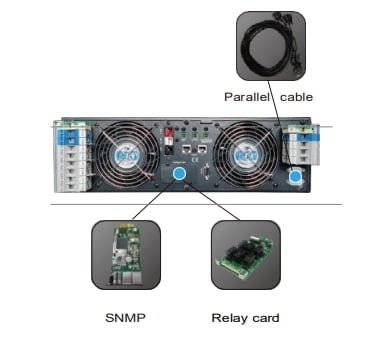

-RS232, RS485, Parallel, Intelligent Slot (SNMP card/
Relay card (Optional)), BMS (Optional), EPO port,
Output port, MAINTAIN-AUXSWS port
-PDU module is optional
Off-Grid Solar Inverter 3.6kW/6kW Safety – 6kV lightning protection – DC – DC high frequency isolating converter (Battery)– Waterproof PV terminal Green – Up to 93.5% efficiency– Output power factor is 1.0– Intelligent

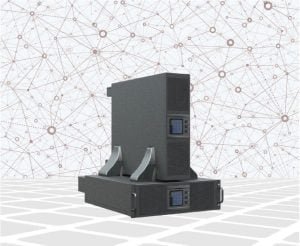

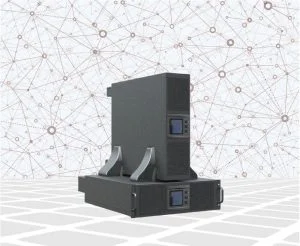

VR Series 3:3 3:3 phase PF 1.0Capacity:10kVA～20kVA Features -LCD support Rack/Tower convertible design -N+X parallel redundancy, support maximum 4 units in parallel -Online double conversion with DSP control -Input current harmonic:<3% -Wide

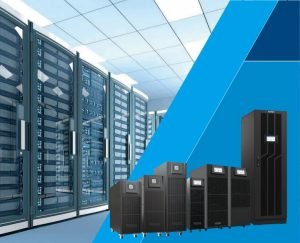

HVV3300- Series 3:3 3:3 phase PF 0.9 (PF 1.0 optional)Power range: 10kVA～40kVA Features ·High power density design ·N+X parallel redundancy,support maximum 4 units in parallel·Online double conversion with DSP control·Input current harmonic: ＜3%·Wide
