·High power density design
·N+X parallel redundancy,support maximum 4 units in parallel
·Online double conversion with DSP control
·Input current harmonic: ＜3%
·Wide input voltage range: 208~478Vac
·Wide input frequency range 40~70Hz
·Optimization battery group, the quantity of battery
10~30kVA: 16/18/20pcs (30~50pcs supportable)
40kVA: 30~50pcs
·Maximum charging current up to 20A (Settable)
·Dual input source (Optional for standard unit)

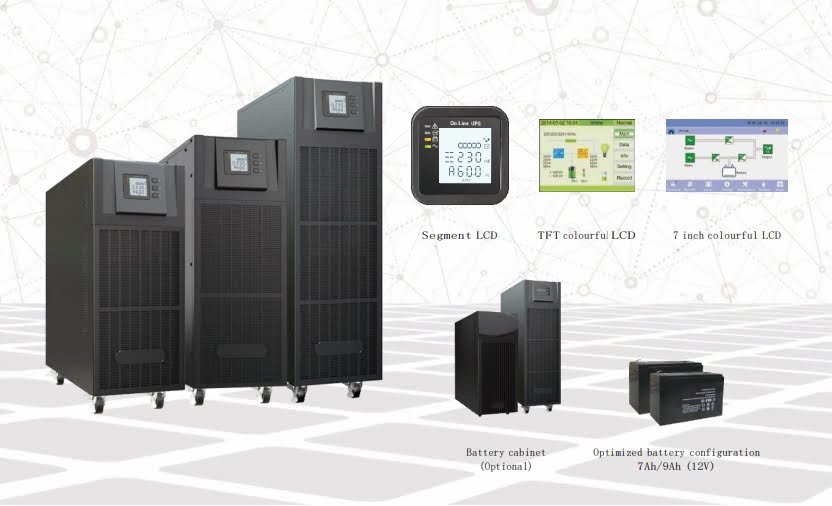

·Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD
are optional
·Versatile LCD human-computer interface
·Generator compatible
·ECO mode operation for energy saving
·Intelligent fan speed regulation
·Self-testing when UPS startup
·50/60Hz frequency converter mode
·Cold start
·The output can meet 100% unbalanced load
·Multiple protection function: short-circuit, overload, overheat,
battery overcharge and overdischarge, output low voltage and
fan fault alarm

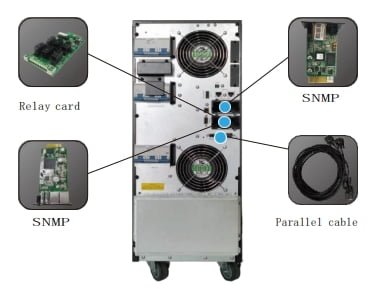

·Multiple communication interface: USB, RS232, RS485,
Parallel port, Dry contact, Intelligent slot, SNMP card
(Optional), Relay card (Optional), Battery temperature
sensor (Optional)
Off-Grid Solar Inverter 3.6kW/6kW Safety – 6kV lightning protection – DC – DC high frequency isolating converter (Battery)– Waterproof PV terminal Green – Up to 93.5% efficiency– Output power factor is 1.0– Intelligent
VR Series 3:3 3:3 phase PF 1.0Capacity:10kVA～20kVA Features -LCD support Rack/Tower convertible design -N+X parallel redundancy, support maximum 4 units in parallel -Online double conversion with DSP control -Input current harmonic:<3% -Wide
HVV3300- Series 3:3 3:3 phase PF 0.9 (PF 1.0 optional)Power range: 10kVA～40kVA Features ·High power density design ·N+X parallel redundancy,support maximum 4 units in parallel·Online double conversion with DSP control·Input current harmonic: ＜3%·Wide
